SMD5050 60 Watt 220V Explosion Proof LED Flood Light
Explosion proof led fixtures 30W,40W,50W,60W, 120-135lm/w, 220V or 24V, waterproof IP66, IK08
Explosion-proof high energy saving lighting fixtures 30W with Optic beam 10°20°30°40° 60°90°120° for different hazardous location lighting solutions
Product Description
LCD-BHD-3000 series floodlights with LED technology combine lightweight, compact design, high performance in terms of reliability,
safety, efficiency and energy saving. They are characterized by LEDs with a variety of optics beam 10°20°30°40° 60°90°120° that permits a
light distribution and a perfectly uniform lighting in every direction and all those areas defined as dangerous for the presence of gas, explosive dust,
such as Zone 1, 2, 21, 22.
Features
• With LUMILEDs chip SMD5050 and getting a high lumen output: up to 130 lm/W
• Wide voltage input AC90-264V and 12-32VDC available.
• Suitable for Explosion Group Zone 1,2&21,22, temperature class T1-T6.
• Power driver and led source are in different cavity.
• High anti-corrosion performance.
• Toughened glass cover stands 4J impact.
• Patent fins heat-Heatsink dissipation structure.
CERTIFICATION DATA
| Classification: | Group II | Category 2GD |
| Installation: EN 60079.14 | Zone 1 - Zone 2 (Gas) | Zone 21 - Zone 22 (Dust) |
| Marking: | II 2GD Ex de IIC T5/T6 Gb - Ex tb IIIC T80°C Db IP66 |
| Certification: | Atex and IECEx |
| Standards: | EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-7: 2007, EN 60079-31: 2014 and EUROPEAN DIRECTIVE 2014/34/UE
IEC 60079-0: 2011, IEC 60079-1: 2014-06, IEC 60079-28: 2015, IEC 60079-31: 2013, IEC 60079-7: 2015
European Directive 2006/95 Low voltage
European Directive 2004/108 Electromagnetic compatibility
European Directive 2003/108 WEEE Waste electrical and electronic equipment
European Directive 2011/64 RoHS |
| Class temperature: | 100°C (T5) | 85°C (T6) |
| Ambient temperature: | -30°C +45°C (T6 / IIC) | -30°C +65°C (T5 / IIC) |
| Degree of protection: | IP66 |
| Remark: | This equipment can be used in an environment containing explosive atmosphere and with the presence of hydrogen. |

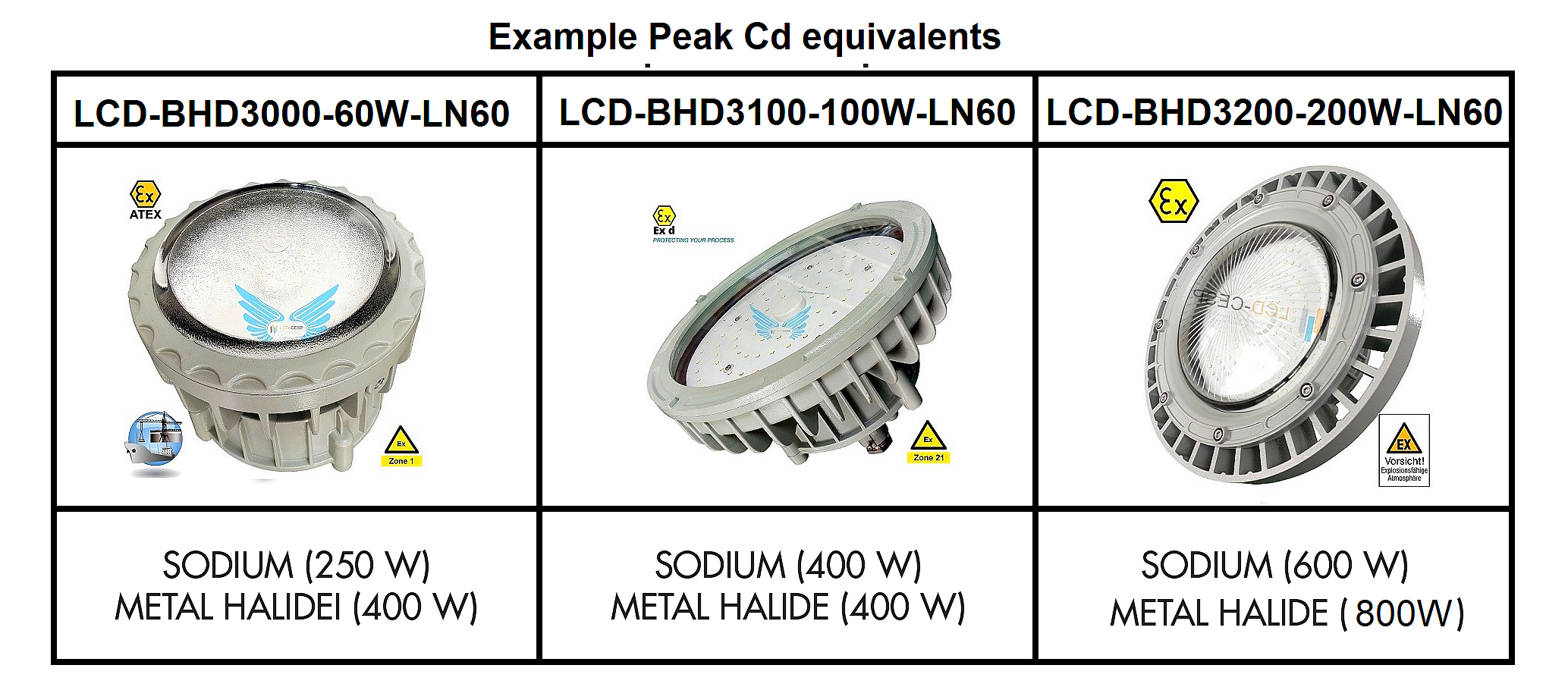

LCD-BHD-3000/ 3100 / 3200 Explosion proof flood & high bay lights
MECHANICAL FEATURES
Body: Low copper content aluminium alloy ADC12 fixtures with Patent fins heat-Heatsink for better heat dissipation.
Glass face: Shock and temperature resistant tempered glass sealed with aluminium ring.
Supporting bracket: Galvanised steel or stainless steel #316 or #304 available.
Entries: M25 entries
Coating: Polyester coating (Light grey)
Corrosion resistant: The standard of the aluminium alloy used by LCD has passed the tests required by
standards EN60068-2-30 (hot/humid cycles) and EN60068-2-11 (salt mist tests).
Flood & high bay light Optics
Optic beam 10°20°30°40° 60°90°120°
Each LED has a “circling shaped beam” optics lens or reflector that allows to distribute the light on the floor in a perfectly uniform way. Forthermore, the light points
can be optimized reducing the system costs. They are suitable for any indoor or outdoor application ensuring lighting of large areas and a fantastic and symmetrical distribution of the light.
Features:
- circling shaped beam
- Precision Component lens or reflector
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design
Electrical technical data
| Electrical features | LCD-BHD3000-60-LNXXX | LCD-BHD3100-100-LNXXX | LCD-BHD3200-200- LNXXX |
| Power supply: | 100-277 VAC ±10% (12-32VDC on requests) |
| Rated frequency: | 50/60 Hz ±5% |
| Power consumption: | 63W 105W 210W |
| Connection:: | Direct connection to terminal board L, N, Pe. Section 4mm2, suitable for loop-in/loop-out |
| Power factor: | >0,97 |
| Rated current: | 559 mA 877mA 1303 mA |
| EMC (electromagnetic compatibility): | EN 55015, EN 61547, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4.... |
| THD (total harmonic distortion): | <15% (100-277 Vac) |
| Over-voltage protection: | 3-4 kV |
| Driver performances: | Over-Voltage protection, Over-Current protection, Short-Circuit protection |
| Dimmable (on request): | (1-10 V) o PWM or Triac dimmer |
| Photometric features | |
| LED: | LUMILEDs SMD 5050 |
| Viewing angle: | 10°, 20°, 30°, 40°, 60°, 90°, 120° |
| Type: | Warm white , Neutral white , cool white |
| Group: | symetrical |
| Colour temperature: | 2700-6500K (red, yellow , green, blue etc on requests) |
| CRI: | >75 ( 2700-6500K) |
| Instant Restrike: | Zero |
| L80: | >90,000 |
| Lumen: | 7500lumen 12500lumen 25000lumen |
| Maximum light intensity: | |
| Overall efficiency: | up to 130lumen/w |
ACCESSORIES ON REQUESTS / SPECIAL REQUESTS
Different wattage (code LCD-BHD3000-60-LNXXX/60W)

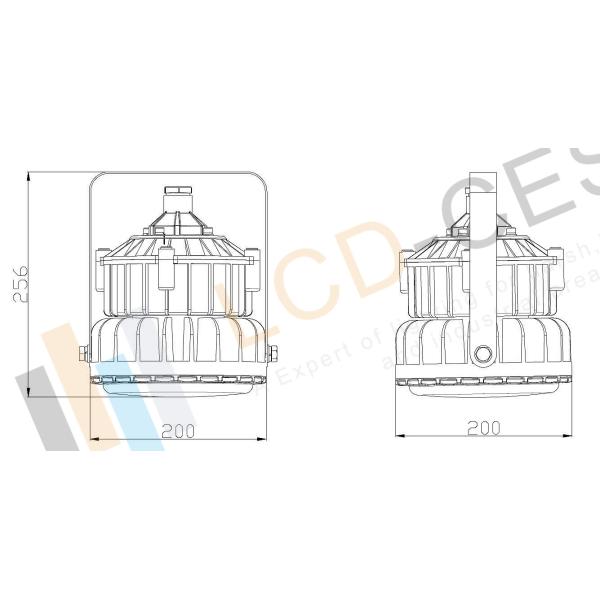

DIMENSIONAL DRAWING
| Code | Dimensions (mm) | Wattage | Class(Ta=+60°C) | Max surface temperature °C | Weight (kg) | Carton Size (CM) |
| ¢ D x H mm |
| LCD-BHD3000-60-LNXXX | ¢ 200 x 170 mm | 60W | T5 | 100 | 4.5 | |
| LCD-BHD3100-100-LNXXX | ¢ 296 x 175 mm | 100W | T5 | 100 | 6.0 | |
| LCD-BHD3200-200-LNXXX | ¢ 360 x 260 mm | 200W | T5 | 100 | 8.5 | |

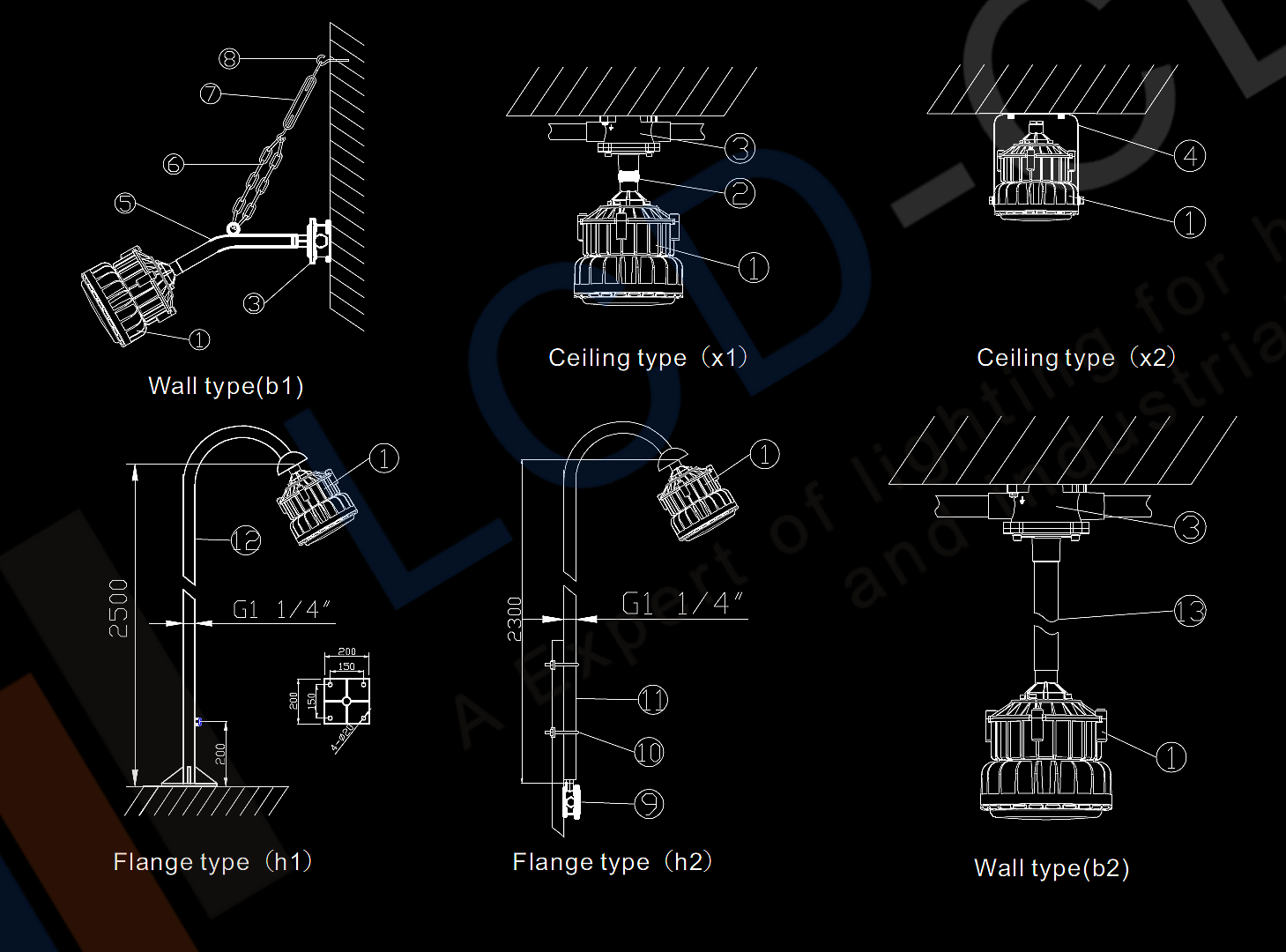

Installation and mounting methods
